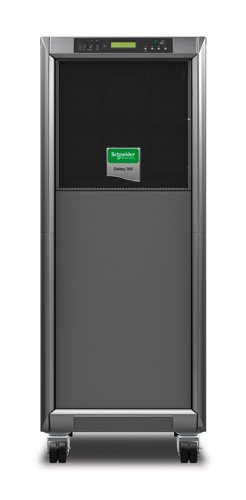

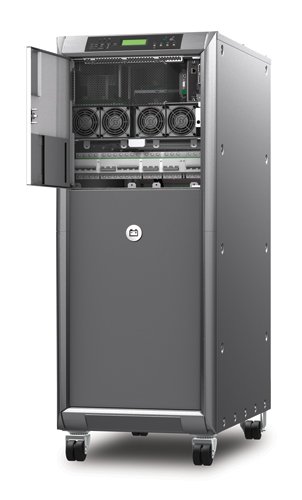

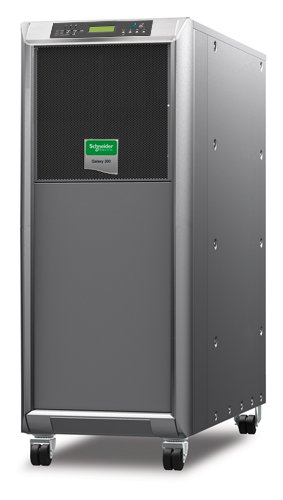

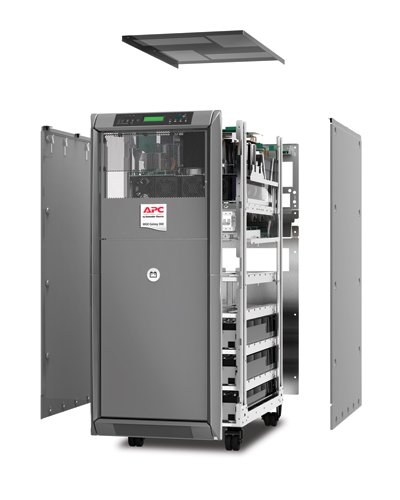

MGE Galaxy 300 40kVA 400V
G3HT40KHB2S
Download Data Sheet
MGE Galaxy 300 40kVA 400V 3:3 with 20min Battery, Start-up 5x8
Effective three phase power protection against downtime and data loss for mission critical applications. UPS with long backup charger, supplied without batteries. To be used with external batteries. Please click here for additional runtime information.
Includes: CD with software , Installation guide , Network Management Card , Start-Up Service , User Manual
Output
-
Output power capacity
32.0 KWatts / 40.0 kVA
-
Max Configurable Power (Watts)
32.0 KWatts / 40.0 kVA
-
Nominal Output Voltage
400V 3PH
-
Output Voltage Note
Configurable for 380 : 400 or 415 V 3 Phase nominal output voltage
-
Output Voltage Distortion
Less than 5%
-
Output Frequency (sync to mains)
50/60 Hz +/- 5%
-
Output Frequency (not synced)
60Hz +/- 0.1% for 60Hz nominal, 50Hz +/- 0.1% for 50Hz nominal
-
Other Output Voltages
380, 415
-
Load Crest Factor
2.5 : 1
-
Topology
Double Conversion Online
-
Waveform type
Sine wave
-
Overload Operation
60 seconds @ 120% and 30 seconds @ 145%
-
Maximum Output Current
87
-
Output Connections
(1) Hard Wire 5-wire (3PH + N + G) (Battery Backup)
-
Output Voltage THD
< 3% linear load and <5% non-linear load
-
Output Voltage Tolerance
+/- 2% static and 100% load step
Input
-
Nominal Input Voltage
400V 3PH
-
Input frequency
45 - 65 Hz
-
Input Connections
Hard Wire 5-wire (3PH + N + G)
-
Input voltage range for main operations
340 - 477 V
-
Input voltage adjustable range for mains operation
323 - 437 (380V), 340 - 460 (400V), 357 - 477 (415V) V
-
Input Total Harmonic Distortion
Less than 5% for full load
-
Type of Input Protection Required
gL fuse
-
Other Input Voltages
380, 415
-
Maximum Input Current
60.0 A
-
Input Power Factor at Full Load
0.99
Batteries & Runtime
Communications & Management
Physical
-
Maximum Height
1300 , 130.0 cm
-
Maximum Width
500 , 50.0 cm
-
Maximum Depth
860 , 86.0 cm
-
Net Weight
609.0 kg
-
Shipping weight
635.0 kg
-
Shipping Height
1440 , 144.0 cm
-
Shipping Width
800 , 80.0 cm
-
Shipping Depth
965 , 96.5 cm
Environmental
-
Operating Environment
0 - 35 °C
-
Operating Relative Humidity
0 - 95 %
-
Operating Elevation
0-3000 meters
-
Storage Temperature
-10 - 60 °C
-
Storage Relative Humidity
0 - 95 %
-
Storage Elevation
0-9000 meters
-
Audible noise at 1 meter from surface of unit
53.6 dBA
-
Online thermal dissipation
2479.0 BTU/hr
-
Protection Class
IP 20
-
