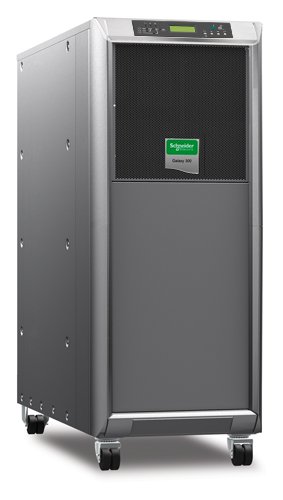

Output

• Output power capacity
  16.0 KWatts / 20.0 kVA
• Max Configurable Power (Watts)
  16.0 KWatts / 20.0 kVA
• Nominal Output Voltage
  230V
• Output Voltage Note
  Configurable for 220 : 230 or 240 nominal output voltage
• Output Voltage Distortion
  Less than 5%
• Output Frequency (sync to mains)
  50/60 Hz +/- 5%
• Output Frequency (not synced)
  60Hz +/- 0.1% for 60Hz nominal, 50Hz +/- 0.1% for 50Hz nominal
• Other Output Voltages
  220, 240
• Load Crest Factor
  2.5 : 1
• Topology
  Double Conversion Online
• Waveform type
  Sine wave
• Overload Operation
  60 seconds @ 120% and 30 seconds @ 145%
• Maximum Output Current
  130
• Output Connections
  (1) Hard Wire 3-wire (H N + G) (Battery Backup)
• Output Voltage THD
  < 3% linear load and <5% non-linear load
• Output Voltage Tolerance
  +/- 2% static and 100% load step
• Bypass
  Built-in Maintenance Bypass

Input

• Nominal Input Voltage
  400V 3PH
• Input frequency
  45 - 65 Hz
• Input Connections
  Hard Wire 5-wire (3PH + N + G)
• Input voltage range for main operations
  340 - 477 V
• Input voltage adjustable range for mains operation
  323 - 437 (380V), 340 - 460 (400V), 357 - 477 (415V) V
• Input Total Harmonic Distortion
  Less than 5% for full load
• Type of Input Protection Required
  gL fuse
• Other Input Voltages
  380, 415
• Maximum Input Current
  30.0 A
• Input Power Factor at Full Load
  0.99

Batteries & Runtime

• Battery type
  Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
• Nominal Battery Voltage
  +/-192 V (split battery referenced to neutral)
• End of Discharge Battery Voltage
  +/-154 V
• Efficiency
  View Efficiency Graph

Communications & Management

• Pre-Installed SmartSlot™ Cards
  AP9630
• Control panel
  Multi-function LCD status and control console
• Emergency Power Off (EPO)
  Yes

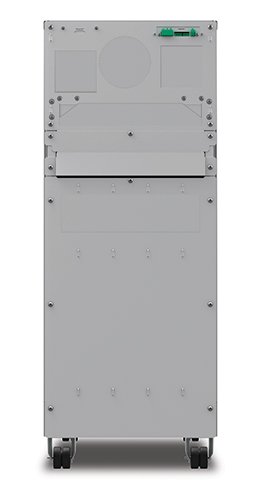

Physical

• Maximum Height
  1300 , 130.0 cm
• Maximum Width
  500 , 50.0 cm
• Maximum Depth
  860 , 86.0 cm
• Net Weight
  430.0 kg
• Shipping weight
  456.0 kg
• Shipping Height
  1440 , 144.0 cm
• Shipping Width
  800 , 80.0 cm
• Shipping Depth
  965 , 96.5 cm

Environmental

• Operating Environment
  0 - 35 °C
• Operating Relative Humidity
  0 - 95 %
• Operating Elevation
  0-3000 meters
• Storage Temperature
  -10 - 60 °C
• Storage Relative Humidity
  0 - 95 %
• Storage Elevation
  0-9000 meters
• Audible noise at 1 meter from surface of unit
  53.6 dBA
• Online thermal dissipation
  1212.0 BTU/hr
• Protection Class
  IP 20
