ZKAccess F18 fingerprint reader



Product No: 82

Introduction:

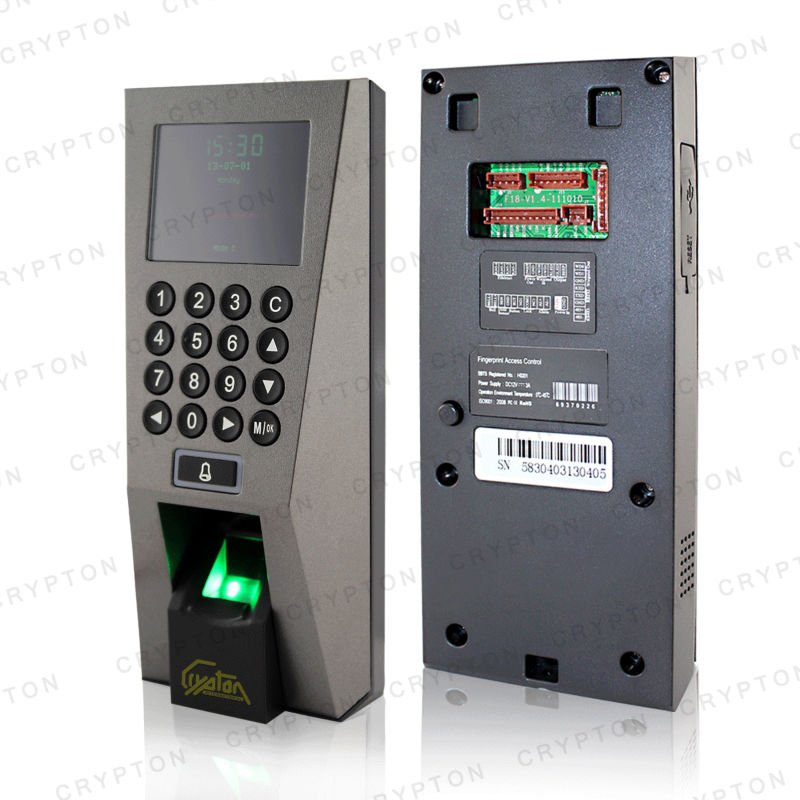

 F18 is an innovative biometric fingerprint reader for access control applications, offering unparalleled performance using an advanced algorithm for reliability, precision and excellent matching speed. The F18 features the fastest commercial-based fingerprint matching algorithm and ZK high-performance, high-image quality optical fingerprint sensor. The device offers the flexibility to be installed standalone or with any third party panel that supports 26-bit Wiegand. All the operation can be done on the TFT-LCD. The fingerprint image will display on the screen . That will guide the user to put the finger on to proper position and increase the recognition rate.

TCP/IP and RS485 are available that the device can be used in different network.

Features

  • .1 touch a-second user recognition
  •  ï¼ŽFingerprint reader with durable and highly accurate ZK optical sensor
  • .Stores 3000 templates, 5,000 cards and 30,000 transactions
  • .Reads Fingerprint and/or Card
  • .Optional integrated smart card reader
  • .Built-in Serial and Ethernet ports
  • .Tamper-proofs switch and alarm outputs
  • .Request-to-exit and alarm contacts
  • .Audio-Visual indications for acceptance and rejection of valid/invalid fingers

Specifications:

Fingerprint Capacity

1500 templates

ID card Capacity

5000

Transaction Capacity

30,000

Sensor

ZK Optical Sensor

Algorithm Version

ZK Finger v10.0

Communication

RS232/485, TCP/IP, USB-host

Access Control Interface for

3rd party electric lock, door sensor, exit button, alarm, Door Bell

Wiegand Signal

Output and Input

Display

TFT LCD Screen

Standard function

ID card, Webserver, DLST

Optional function

Mifare card

Power Supply

12V DC

Operating Temperature

0 ℃- 45 ℃

Operating Humidity

20%-80%
